ETAMS
Elevated Triband Antenna Mast System
Comrod’s ETAMS transforms tactical communication operations by combining HF, VHF, UHF, and L-S band capabilities into a single lightweight, rapidly deployable antenna system. Add in reduction statement, bottom line…7-1
Designed and Engineered for Today’s Military
Comrod ETAMS solves several current military problems that include, but are not limited to:

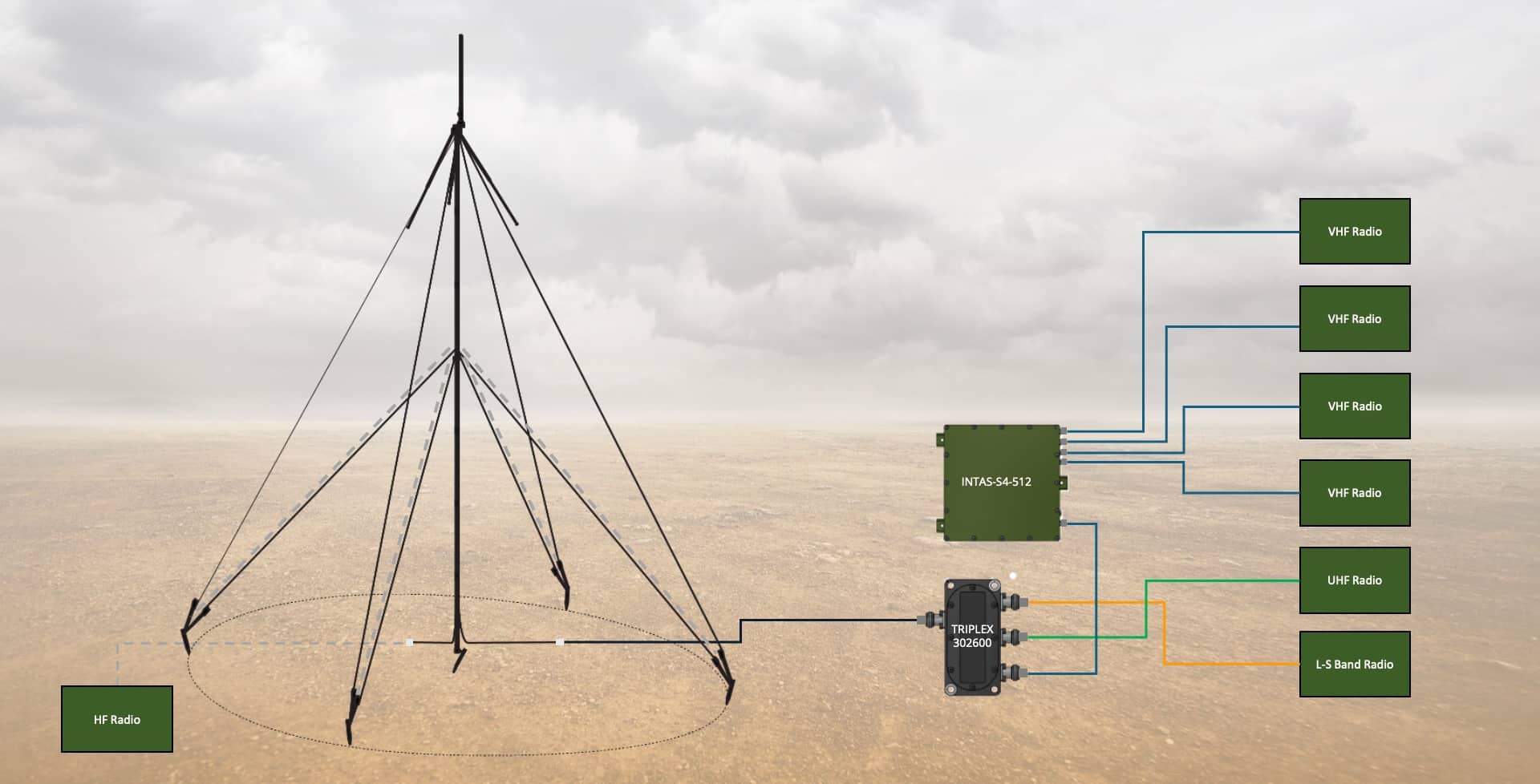

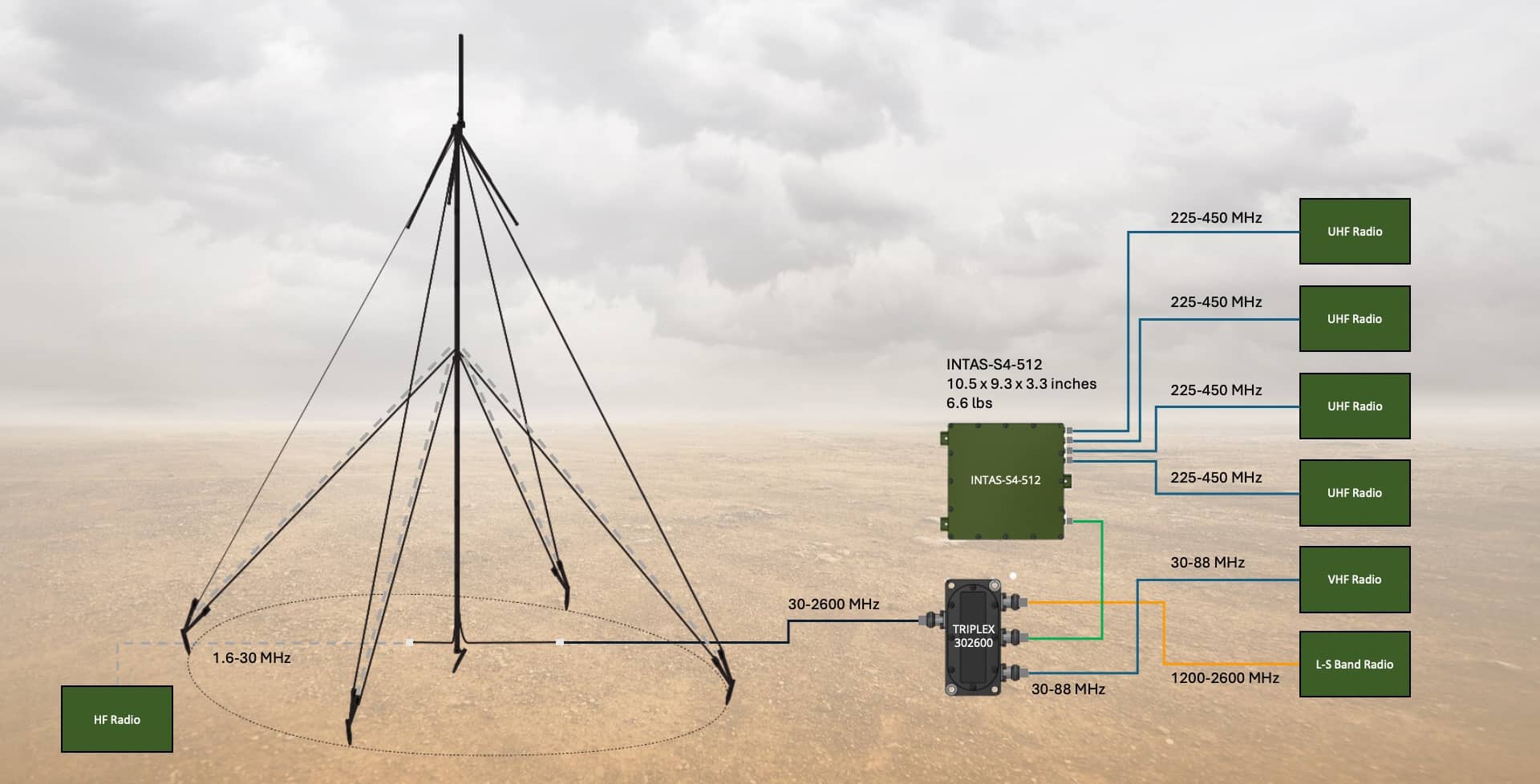

Visual Signature – ETAMS-HF-S4 delivers seven RF channels through one elevated antenna. Adversaries intercepting signals see only one transmission source instead of seven elevated antenna masts, minimizing signature.
Mobility – Traditional command posts require multiple antennas, hindering mobility. With ETAMS-HF-S4, setup time for seven RF channels is reduced to just 10-15 minutes using a single elevated antenna mast, significantly enhancing operational mobility.
Technology – With network modernization priorities, VHF-only antennas are increasingly outdated. ETAMS covers VHF, UHF, and L/S Bands, supporting modern radios and waveforms such as TSM, and eliminates the need for separate OE-254 and COM-201B antennas for range extension.
Soldier mobility – ETAMS enables rapid antenna setup, improving mobility for soldiers. Setup time for ETAMS is about 7-10 minutes (without HF or INTAS) and 10-15 minutes for ETAMS-HF-S4—faster than the OE-254’s published 15-minute setup.

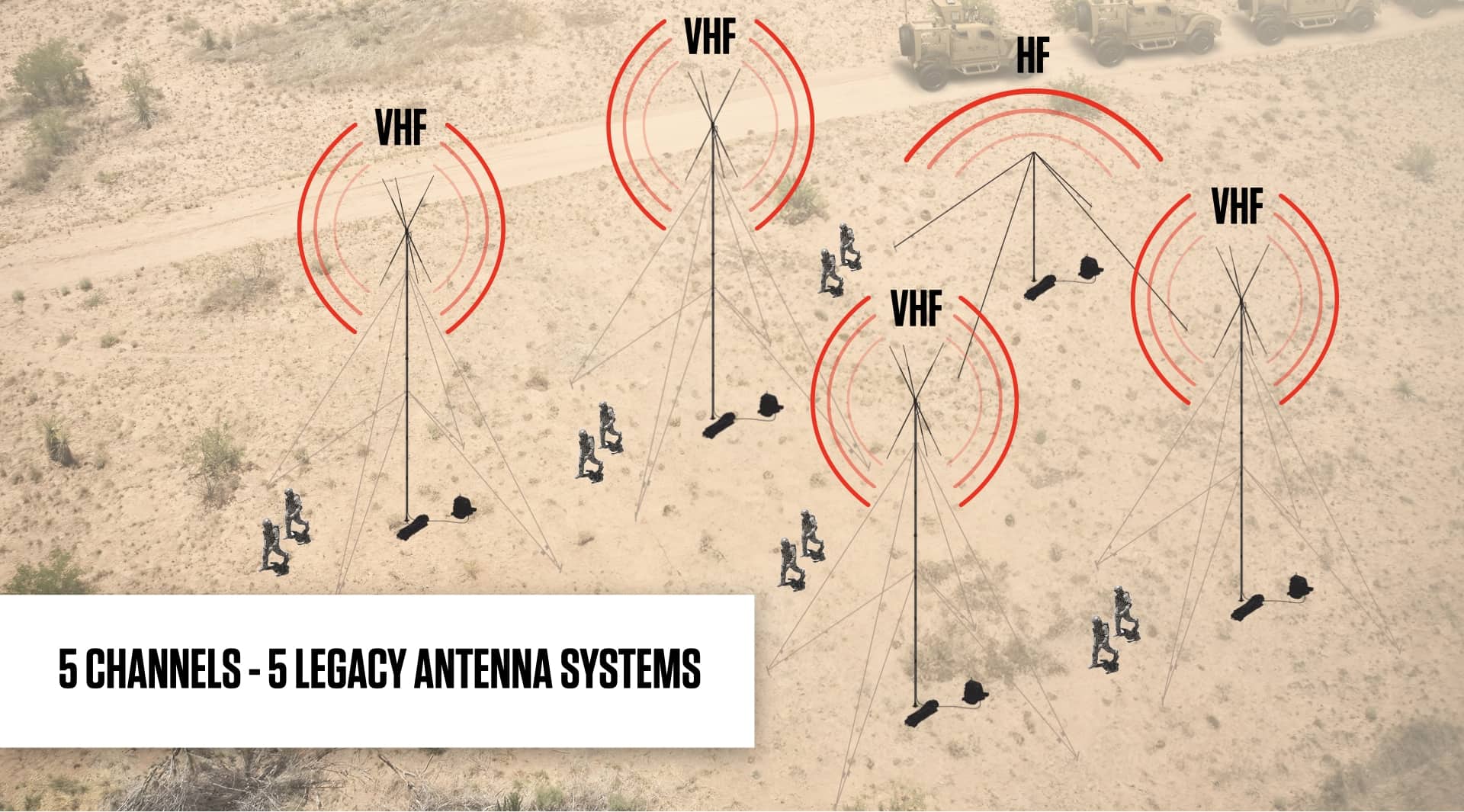

One multi-band antenna and mast can replace up to seven legacy HF antenna and mast systems.
Comrod ETAMS Feature:

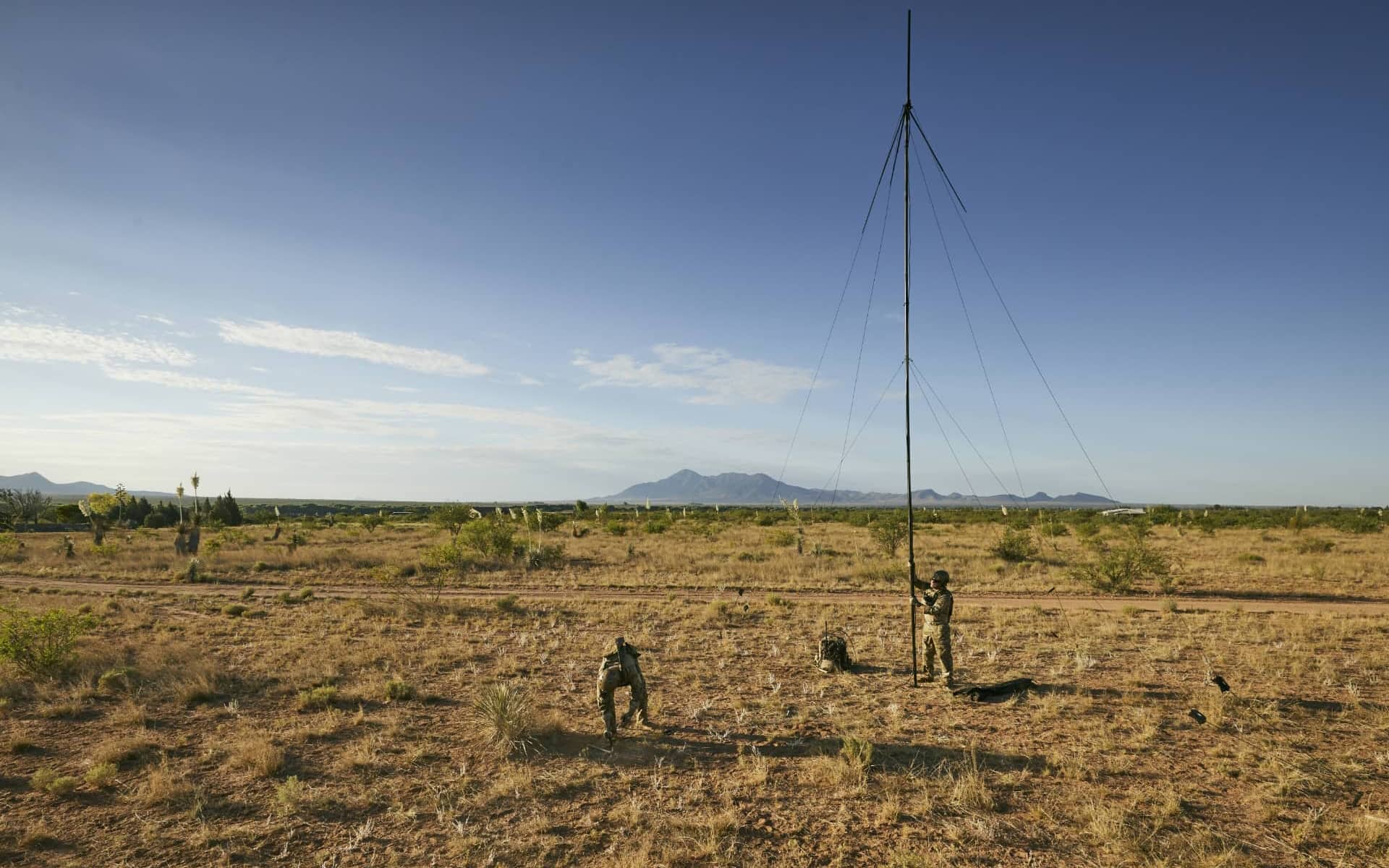

- Elevated antenna mast system

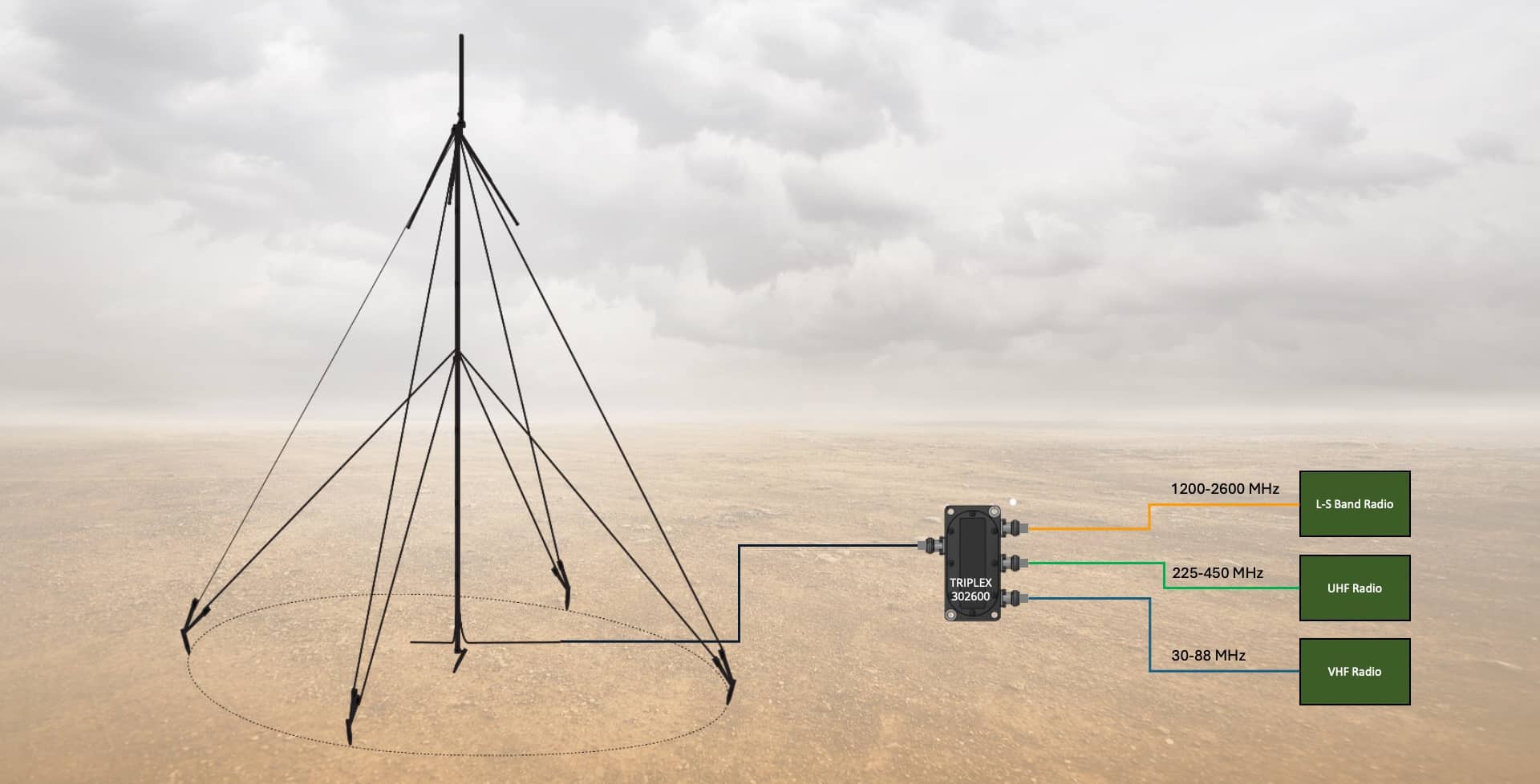

- VHF, UHF, and L-S band frequencies in a single antenna (30-2600 MHz).
- Single mast replacing multiple antenna setups.
- Replaces outdated OE-254 and COM-201B antennas.

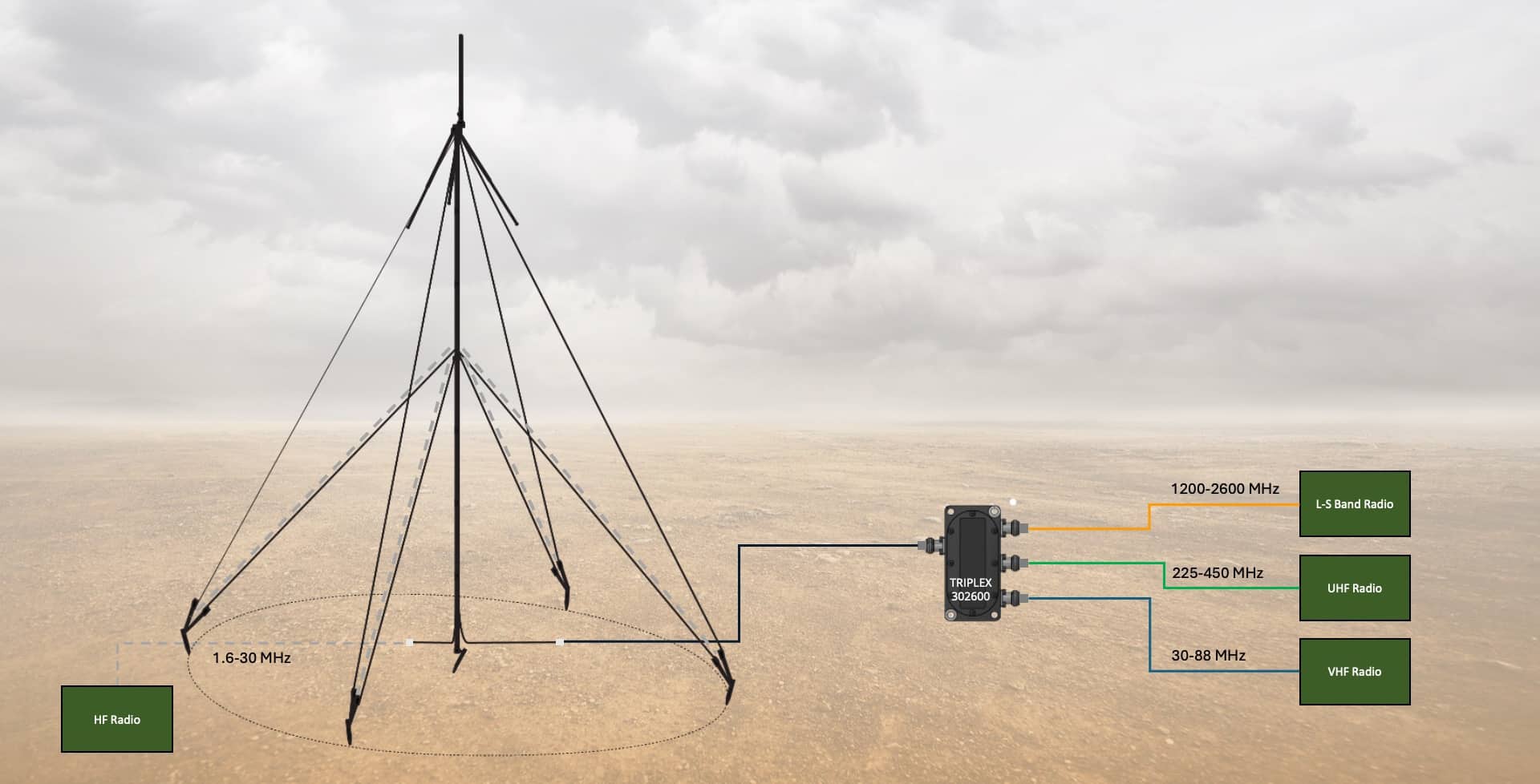

- Additional High-Frequency band (1.6-30 MHz) integrated with standard triband system.
- INTAS Passive Antenna Combiner allows multiple radios (up to four) to share a single antenna.
Multiband Capability:
- HF (1.6 – 30 MHz)
(utilizes special guy wires on mast as antenna) - VHF (30 – 88 MHz)
- UHF (225 – 450 MHz)
- L – S Band (1200 – 2600 MHz)

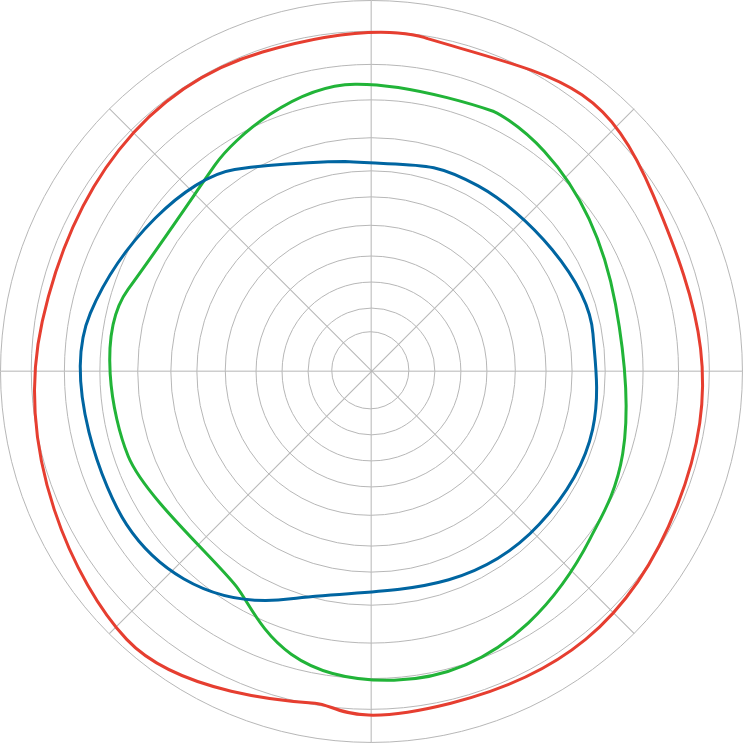

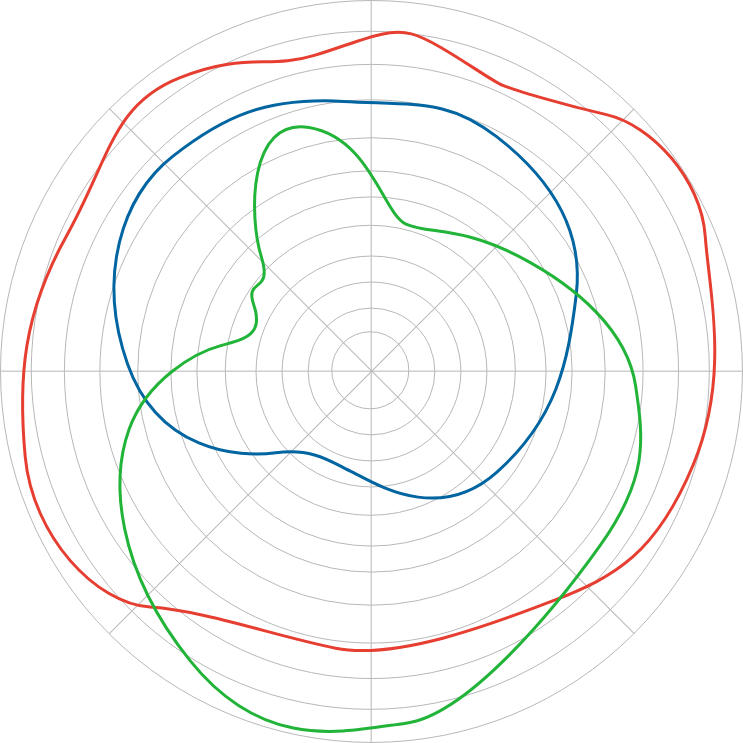

Improved Radiation Patterns

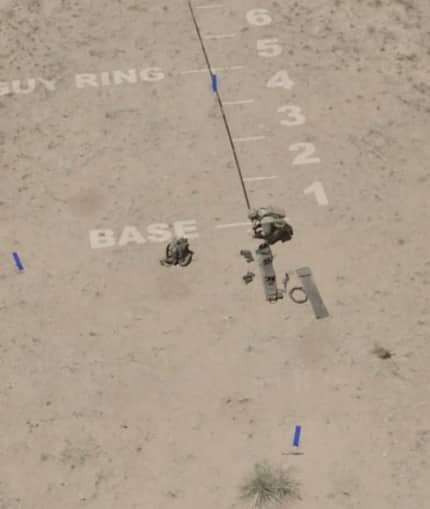

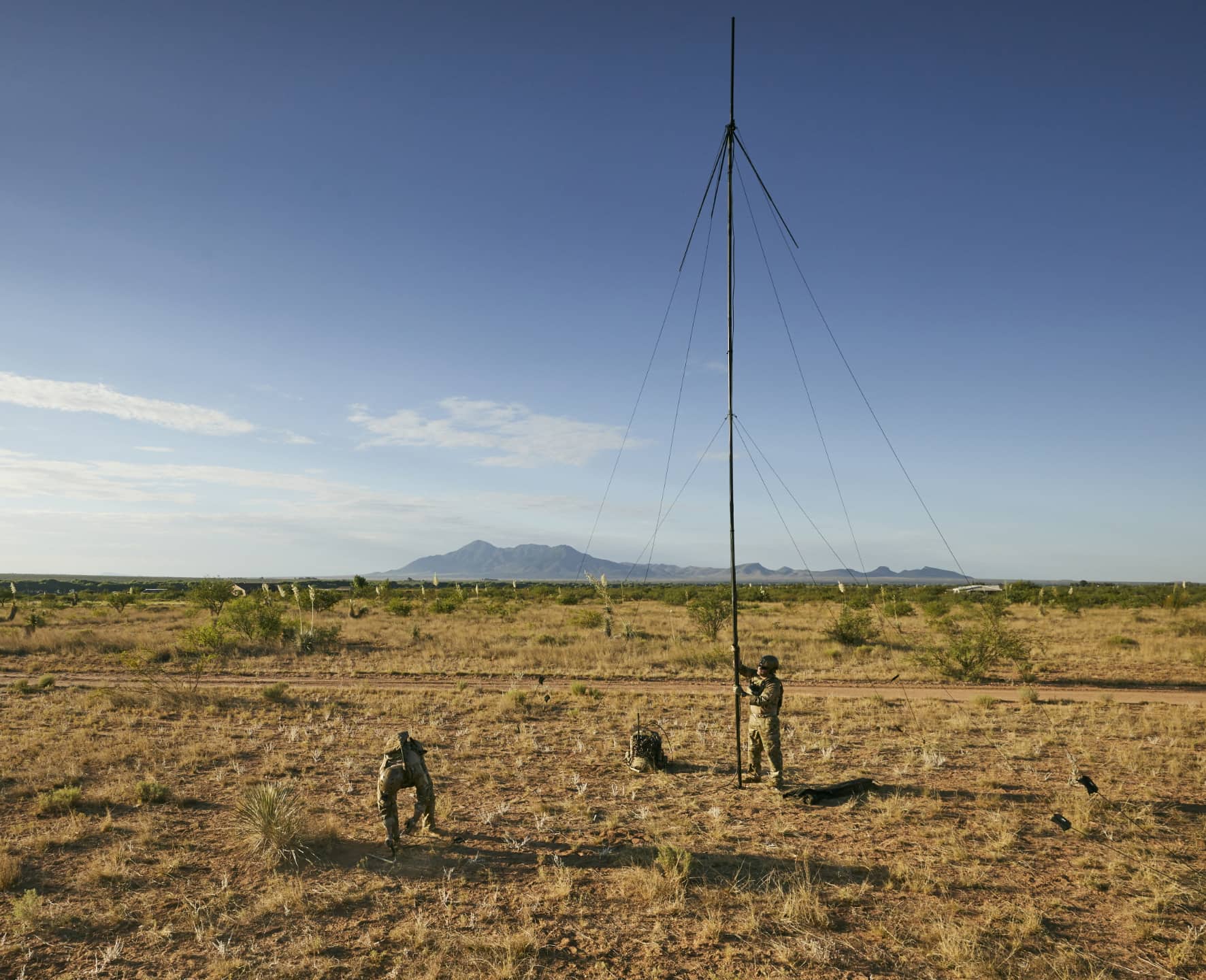

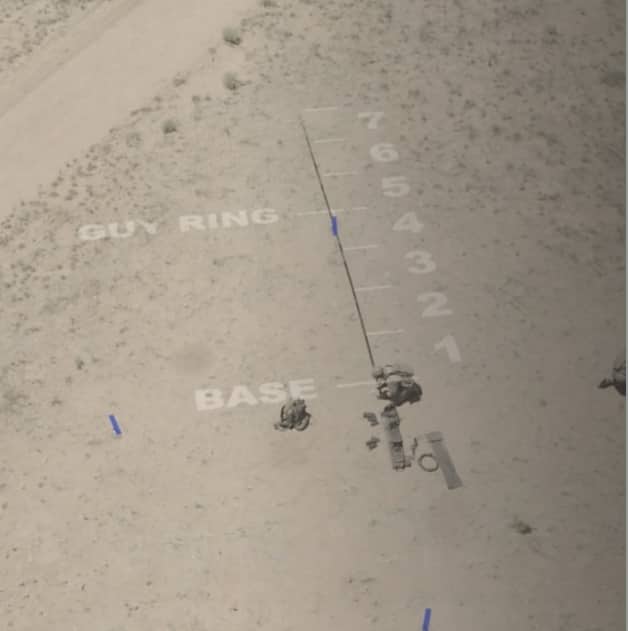

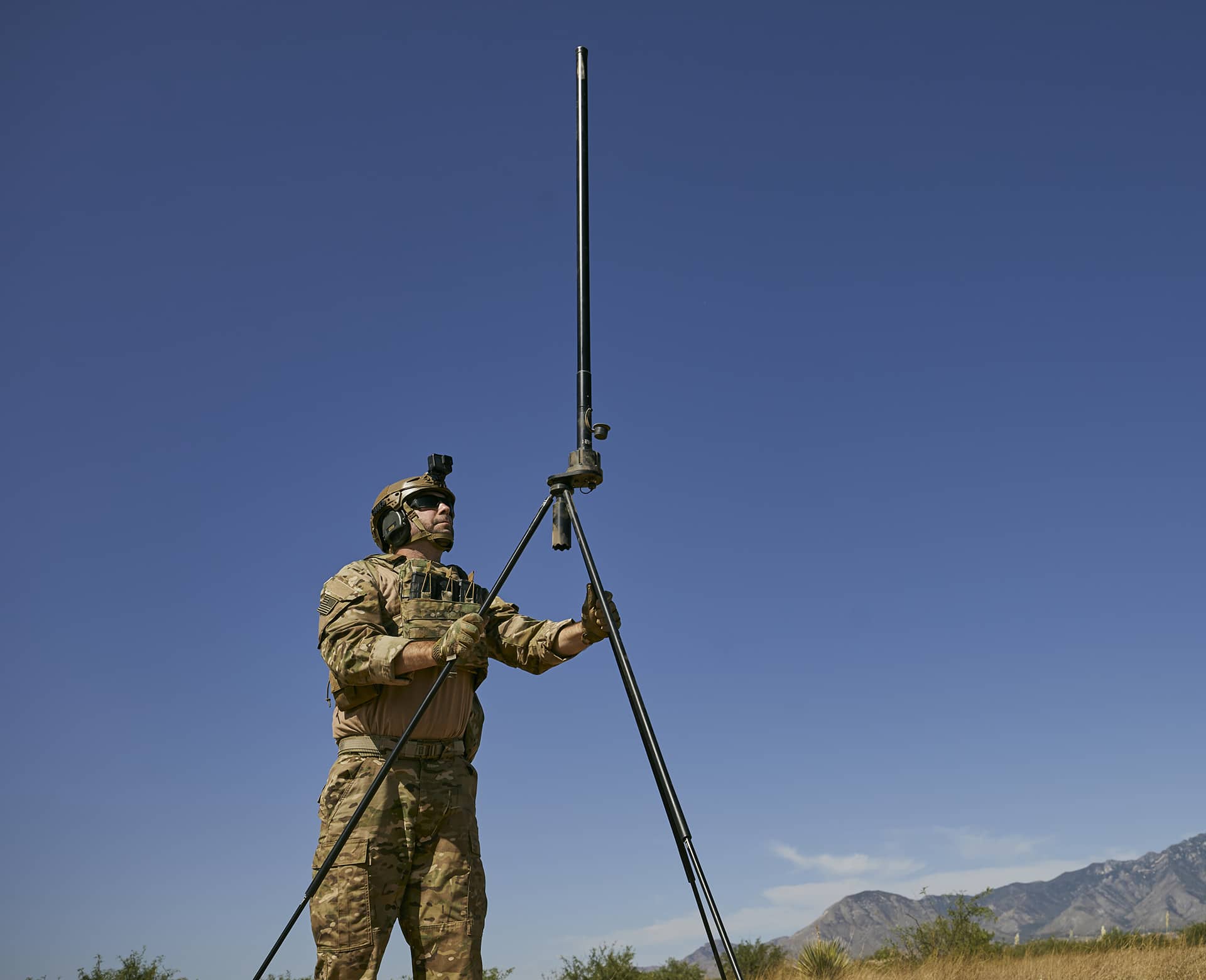

ETAMS standard configurations deploy in as little as 7-10 minutes

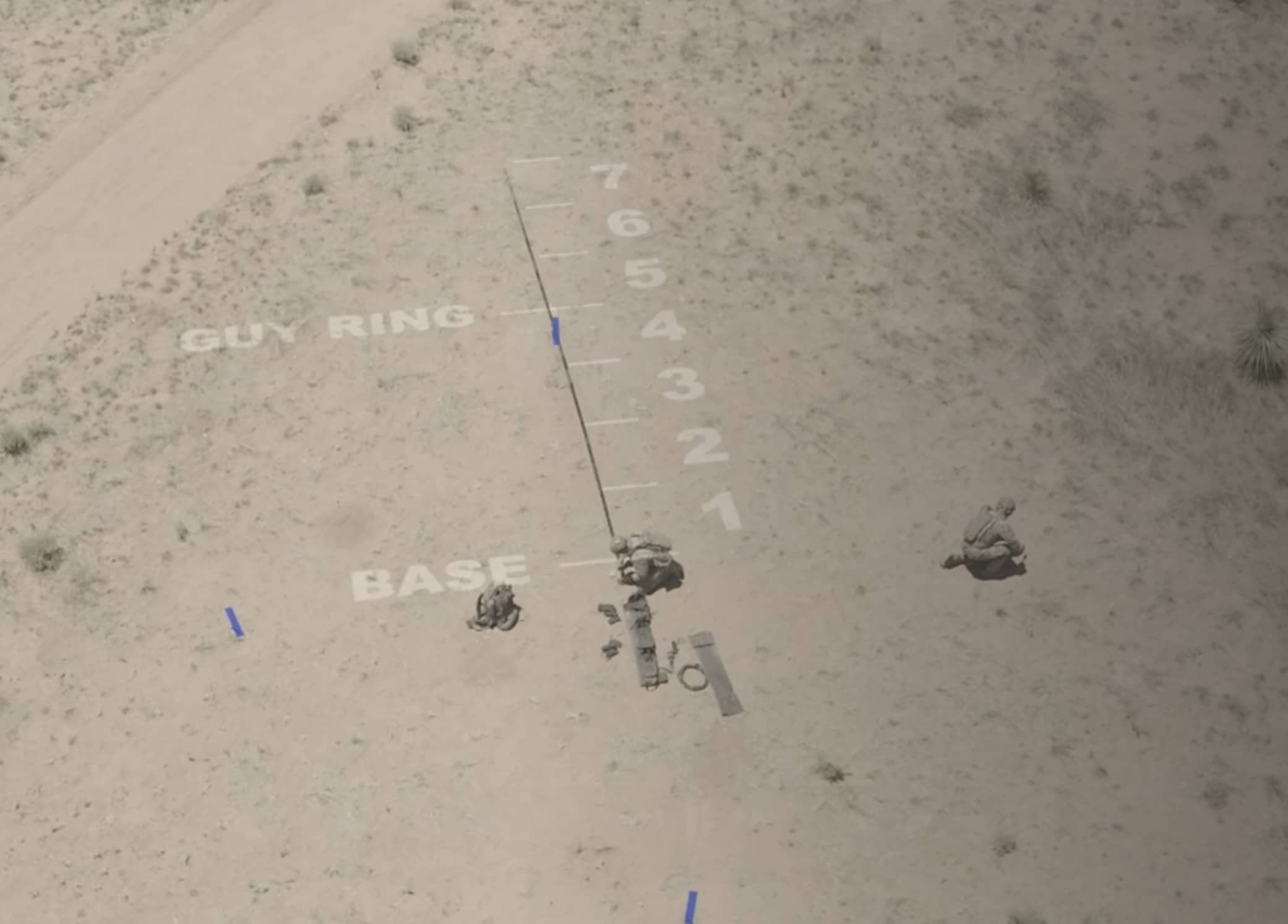

ETAMS standard configurations deploy in as little as 7-10 minutes

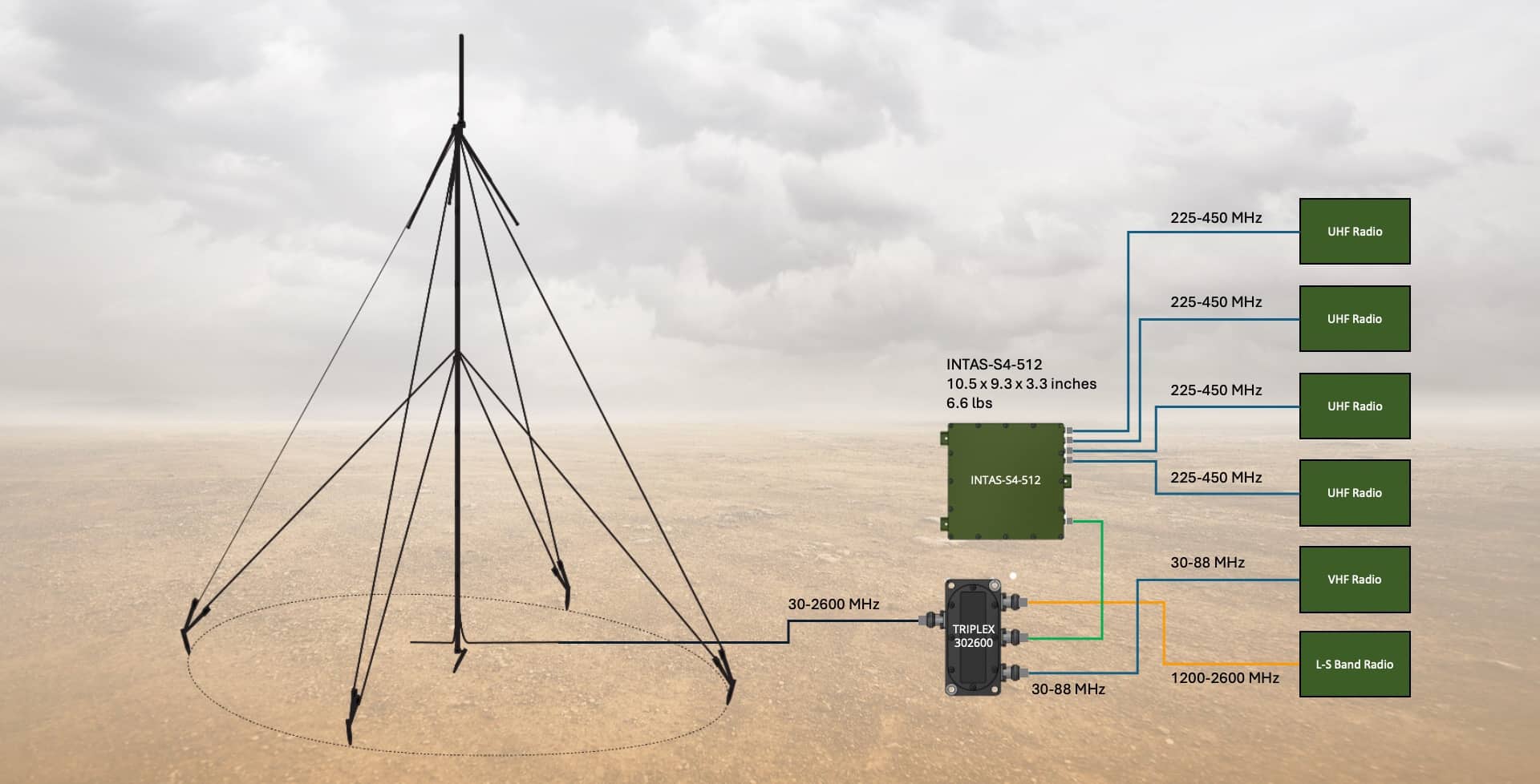

ETAM CONFIGURATIONS
