ETAMS
Elevated Triband Antenna Mast System
Comrod’s ETAMS transforms tactical communication operations by combining HF, VHF, UHF, and L-S band capabilities into a single lightweight, rapidly deployable antenna system.
Designed for Performance and Mobility
Comrod ETAMS solves several current tactical communication problems that include, but are not limited to:
Visual Signature – ETAMS can deliver up to seven RF channels through one elevated antenna system, presenting only one visual signature and transmission source instead of multiple elevated antenna systems.

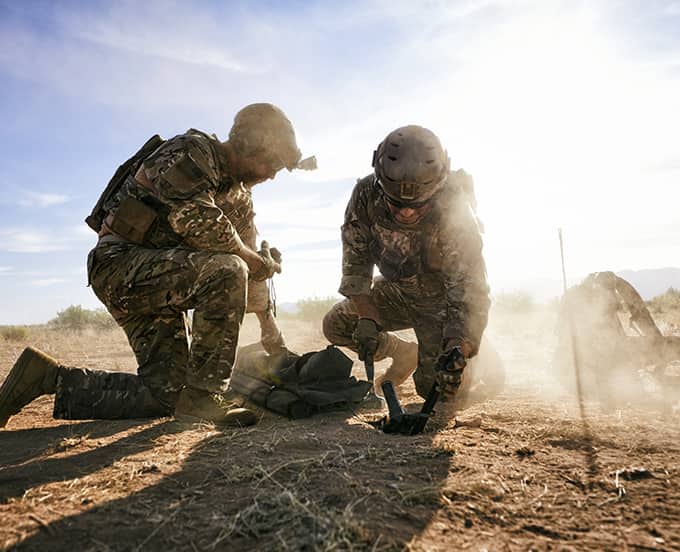

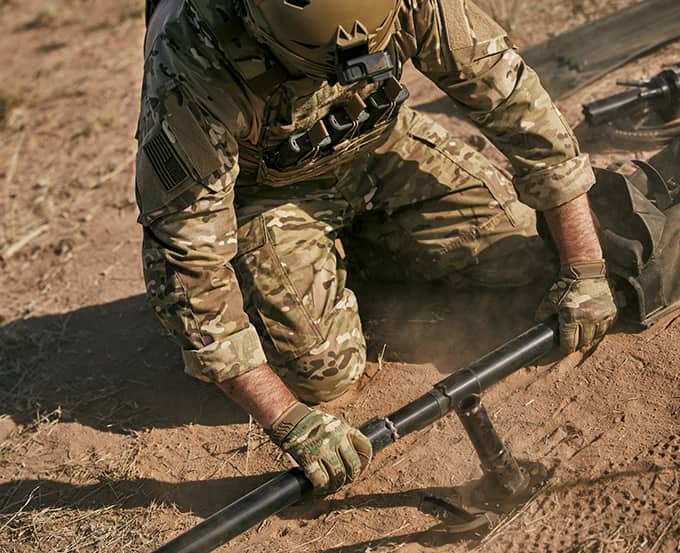

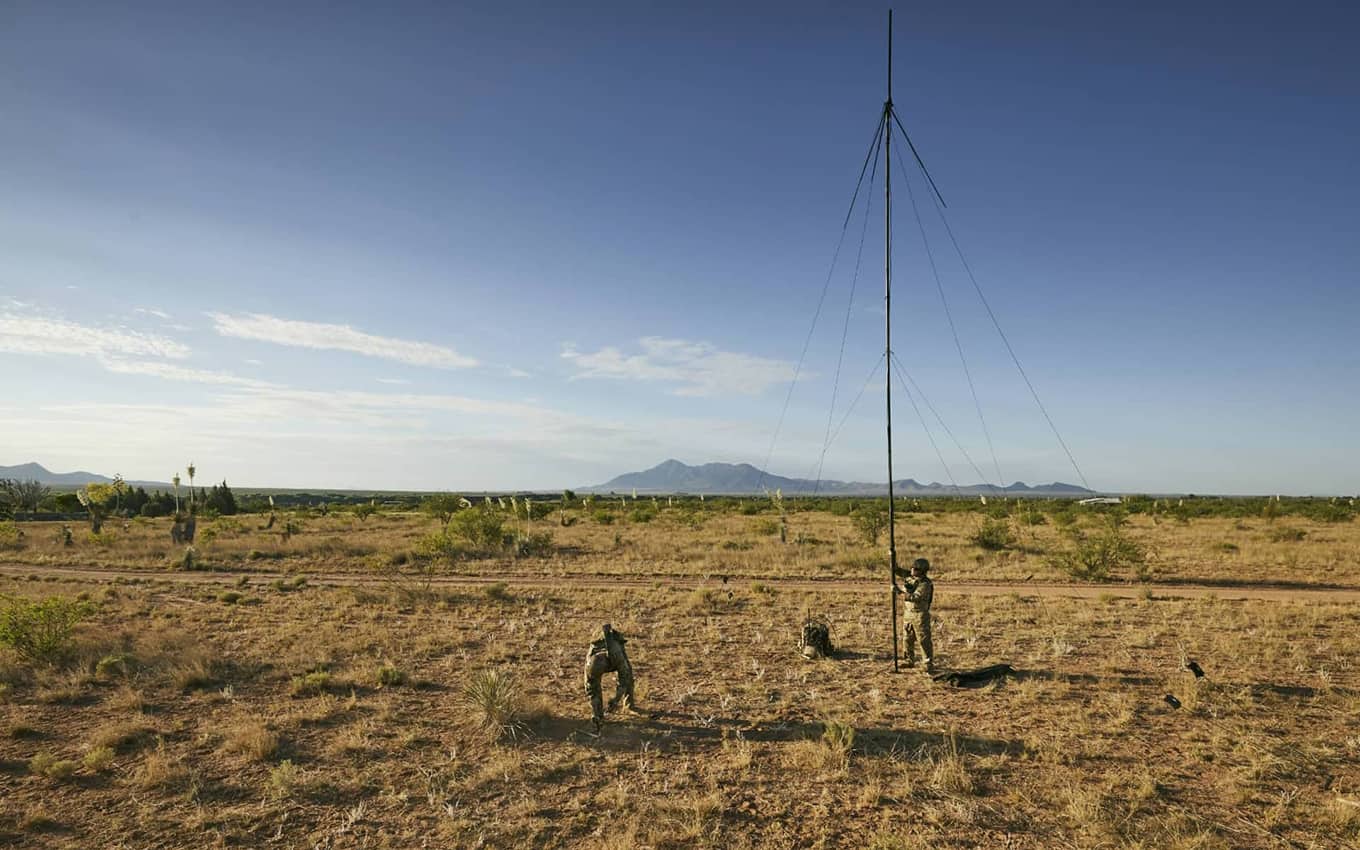

Mobility – Traditional command posts require multiple antennas, hindering mobility. With ETAMS, setup time is reduced to just 7-10 minutes using a single elevated antenna mast system, significantly enhancing operational mobility.
Technology – With network modernization, higher frequency bands are essential. ETAMS covers both HF, VHF and UHF frequencies, as well as L-S Bands, supporting modern MANET technology.

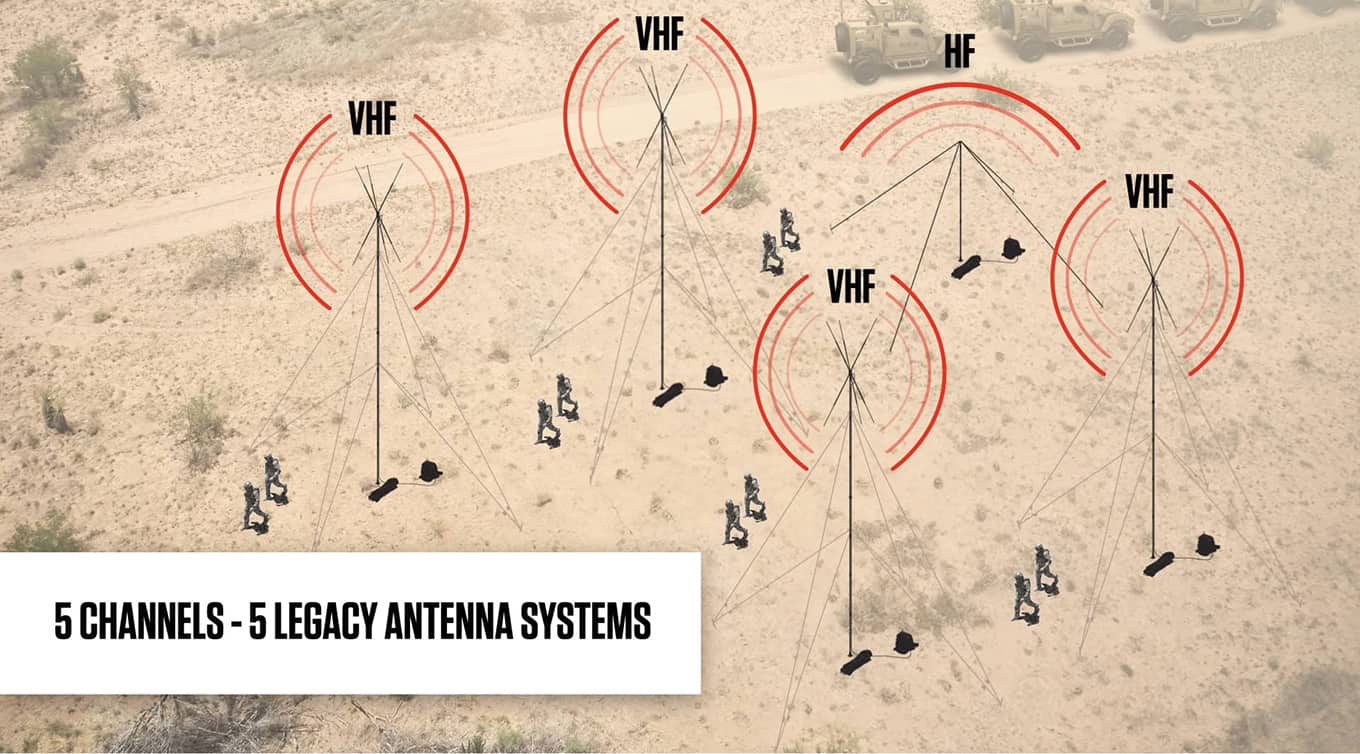

One multi-band antenna and mast system can replace up to five legacy VHF and HF antenna and mast systems, and add additional UHF and L-S band capability.
Comrod ETAMS Features:
- Elevated Tri-band Antenna Mast System
- VHF, UHF, and L-S band frequencies in a single antenna (30-2600 MHz).
- Single mast replacing multiple antenna setups.
- Replaces legacy single band antenna and mast systems.
- Additional 1.6-30 MHz HF band integrated into the mast lower guy system.
- INTAS Passive Antenna Combiner allows multiple radios (up to four) to share a single antenna.

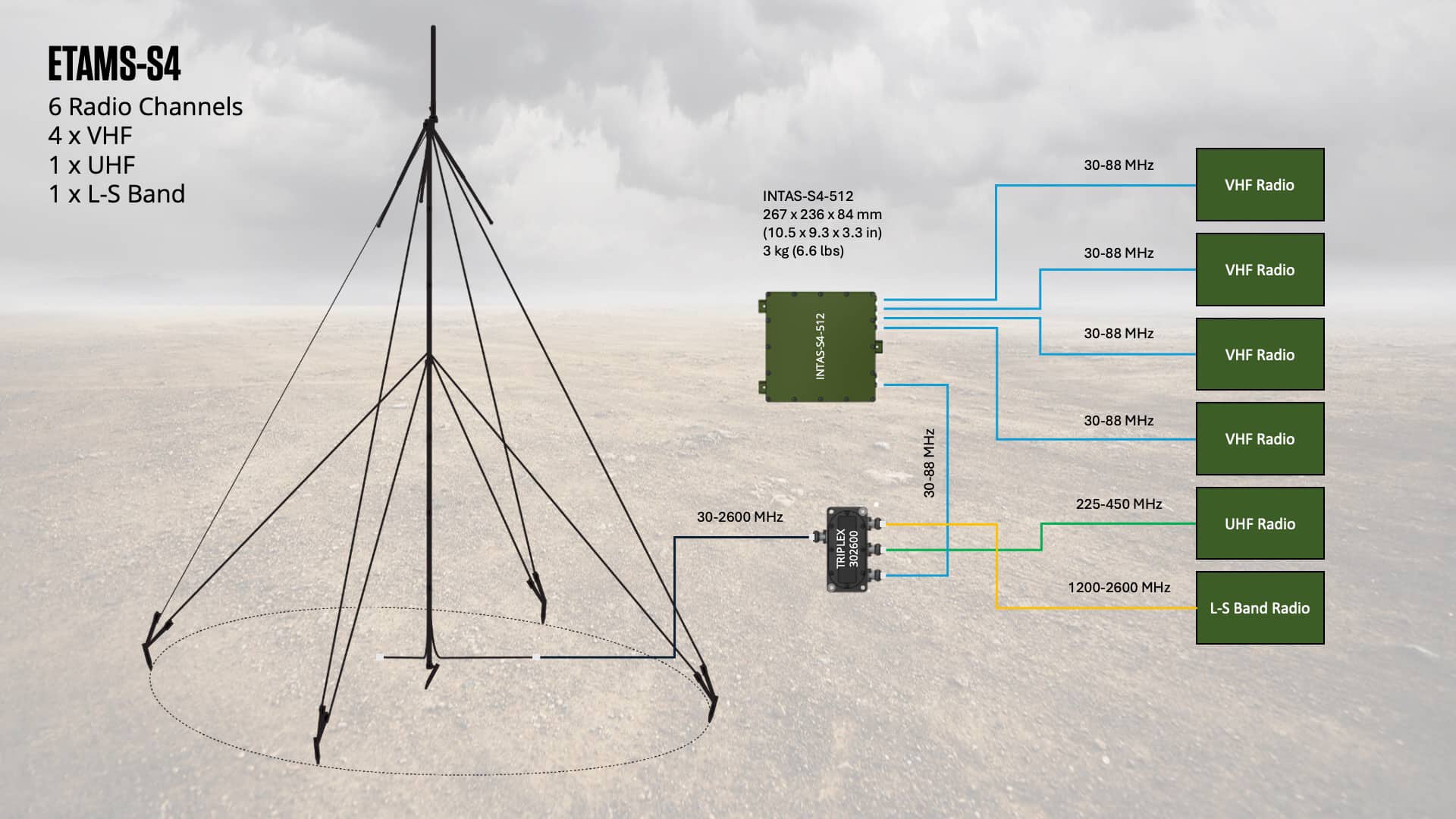

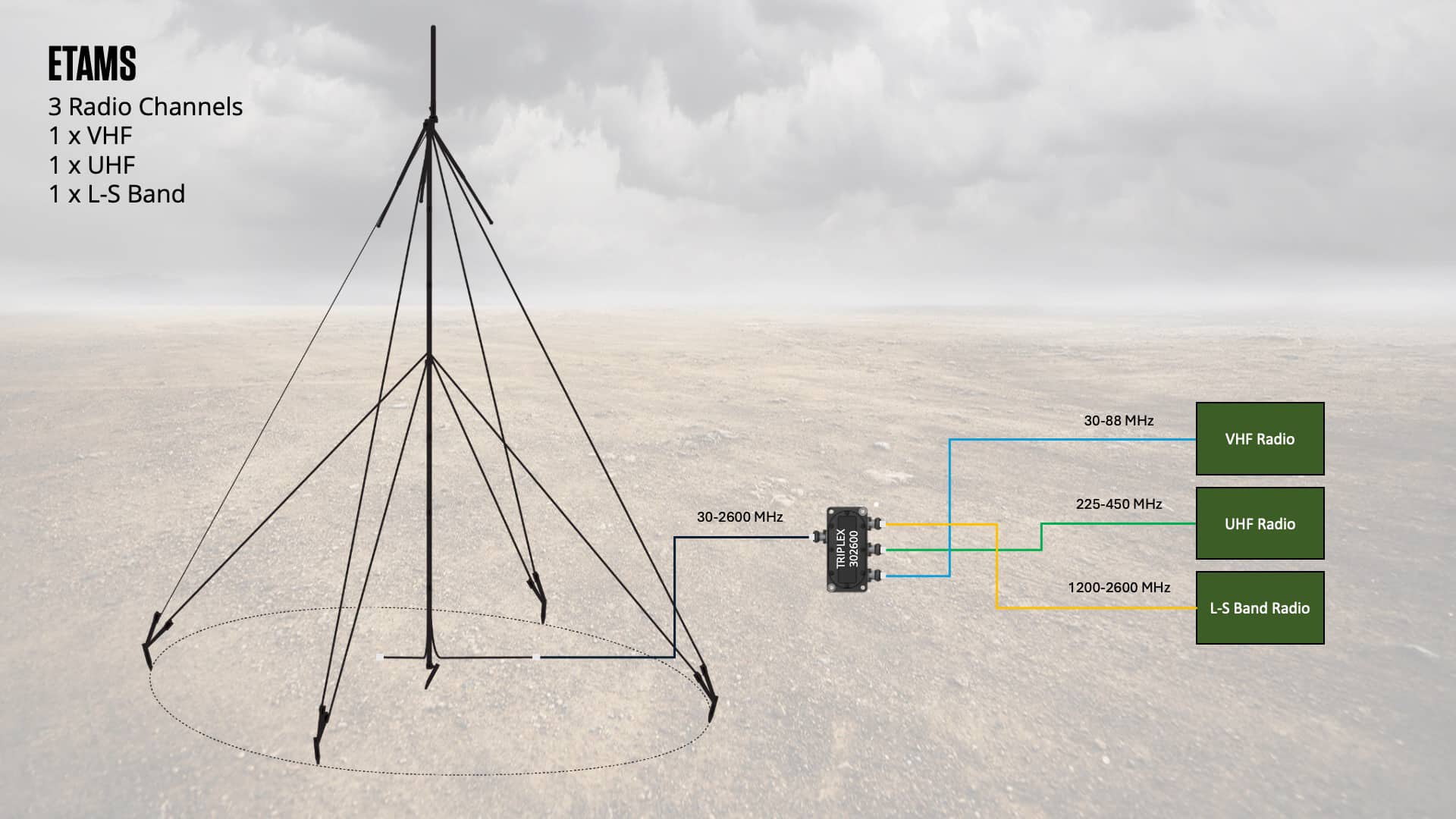

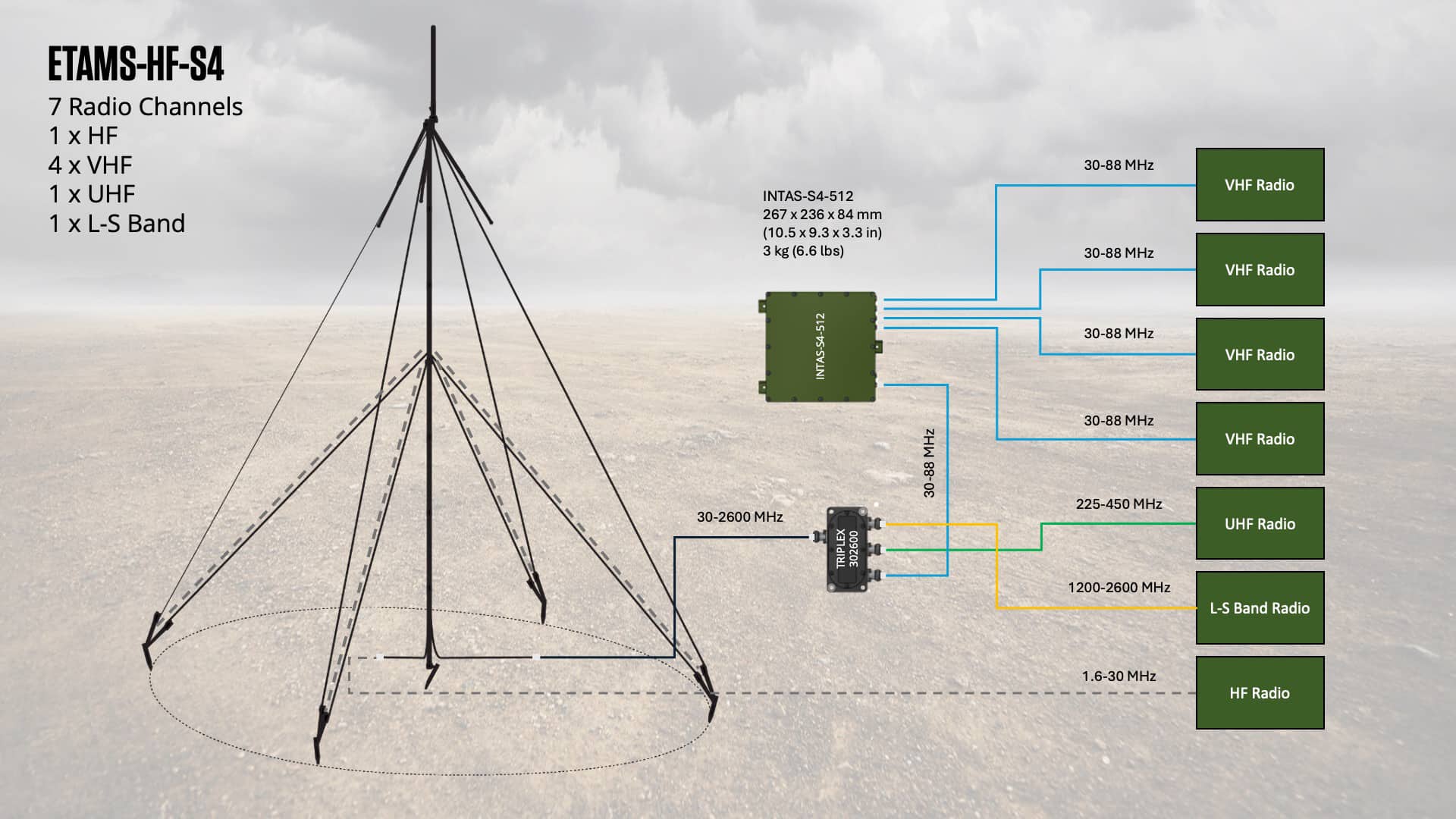

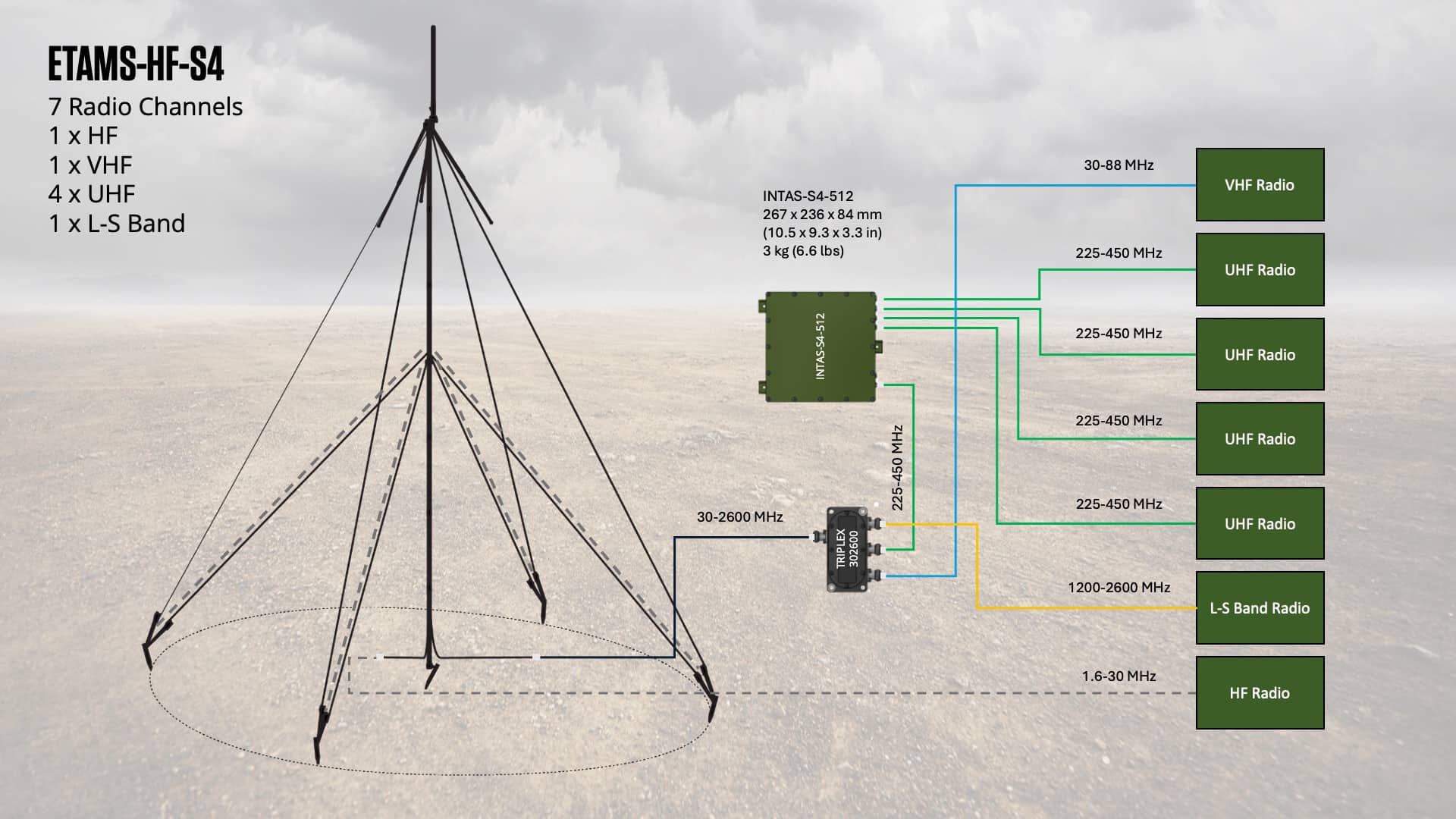

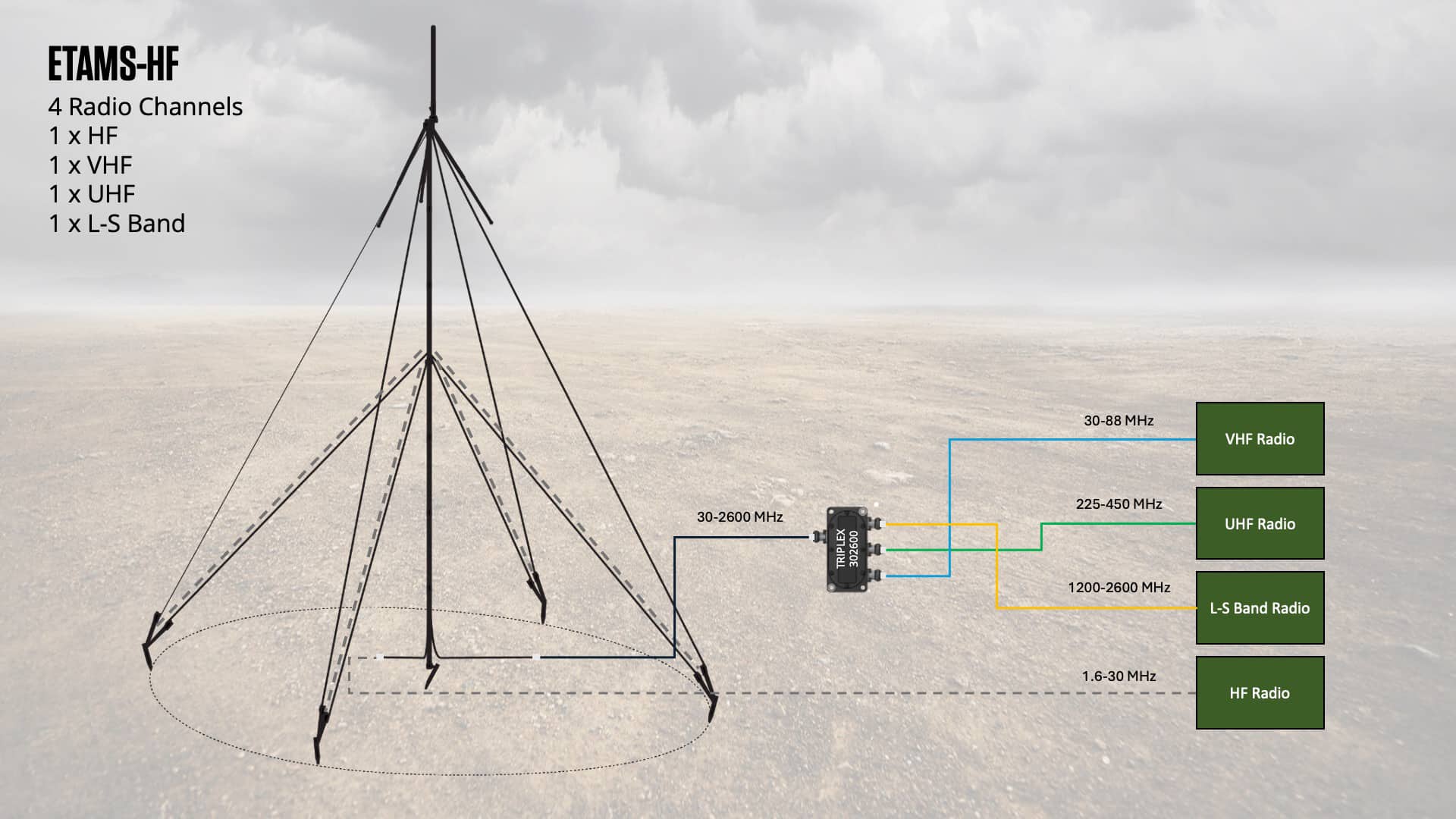

ETAMS CONFIGURATIONS
